Terberg

HD-Series

Heavy Duty Terminal Tractors

Model: RT403
GCW 442,000 lbs.*
Driveline 4 x 4
Engine Volvo TAD1172VE-388 hp Tier4F
Transmission ZF 6WG310 (6F-3R)
Front Axle Capacity: 44,000 lbs @12 mph
56,000 lbs @6 mph
Rear Axle Capacity: 99,000 lbs @12 mph
106,000 lbs @6 mph
5th Wheel: 2 in Cardanic cast steel plate
5th Wheel Lift Capacity: 100,000 lbs **
Lowest 5th Wheel Height: 53"

* Depending on axle ratio and operating conditions

** Depending on how equipped and operating conditions

Download Terberg Brochure

Features

1 2 3 4 5 6 7 8 heavy duty features
  • Easy maintenance access
  • Sound insulation ensures low inside / outside noise levels
  • The fully welded chassis is a perfect combination of and ROPS tested) strength, weight and easy access
  • Heavy duty Cardanic 2" & 3.5" fifth wheel with lift capacity of up to 99,000 lbs
  • High intensity head lights, rear cab mounted LED work lights and reverse LED light
  • Constant 4-wheel drive
  • Planetary hub axles (Kessler)
  • Volvo engine paired with ZF transmission

  • heavy-duty-terminal-tractorConvenient, comprehensive access to vehicle information without the need for a laptop computer or other equipment
  • heavy-duty-terminal-tractorHydraulic oil level sight glass
  • heavy-duty-terminal-tractorRear axle air suspension for extra driver comfort (optional)
  • heavy-duty-terminal-tractorAnti Skid Surfaces

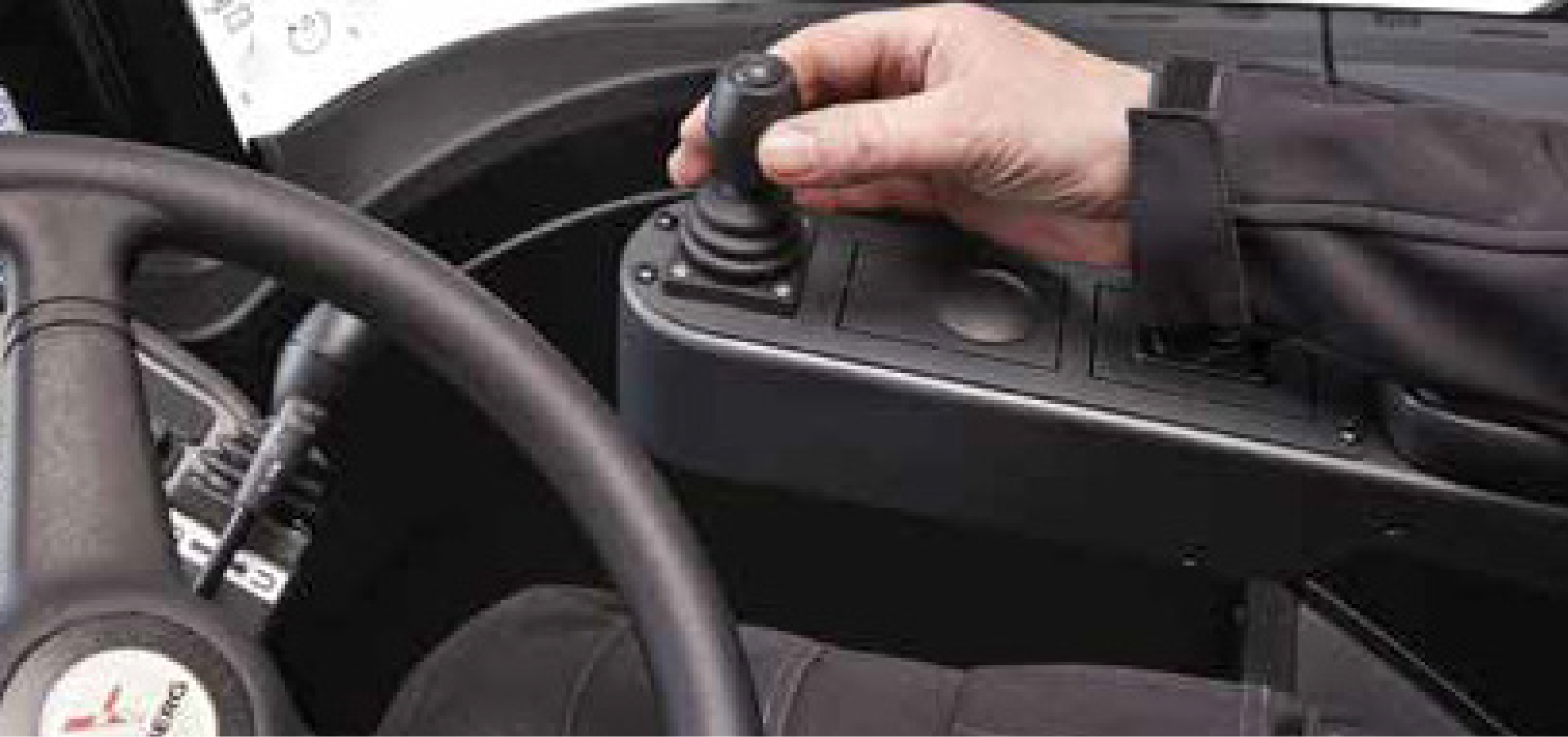

  • heavy-duty-terminal-tractorJoystick in arm rest (optional)
  • heavy-duty-terminal-tractorErgoturn 180° swivelling seat: Seat & pedals are one rotating unit
  • heavy-duty-terminal-tractorThe cab interior provides a high degree of comfort and an excellent working environment for the driver
  • heavy-duty-terminal-tractorEasy cab access from either side of the tractor
  • heavy-duty-terminal-tractorRaised high positioned air inlet with additional cyclone filter (optional)
  • heavy-duty-terminal-tractorFront cover is raised manually / automatically
  • heavy-duty-terminal-tractorAll-steel, cab structure can tilt up to 71 degrees
  • heavy-duty-terminal-tractorConvenient, comprehensive access to vehicle information without the need for a laptop computer or other equipment
  • heavy-duty-terminal-tractorHydraulic oil level sight glass
  • heavy-duty-terminal-tractorRear axle air suspension for extra driver comfort (optional)
  • heavy-duty-terminal-tractorAnti Skid Surfaces
  • heavy-duty-terminal-tractorJoystick in arm rest (optional)
  • heavy-duty-terminal-tractorErgoturn 180° swivelling seat: Seat & pedals are one rotating unit
  • heavy-duty-terminal-tractorThe cab interior provides a high degree of comfort and an excellent working environment for the driver
  • heavy-duty-terminal-tractorEasy cab access from either side of the tractor
  • heavy-duty-terminal-tractorRaised high positioned air inlet with additional cyclone filter (optional)
  • heavy-duty-terminal-tractorFront cover is raised manually / automatically
  • heavy-duty-terminal-tractorAll-steel, cab structure can tilt up to 71 degrees
  • Easy maintenance access
  • Sound insulation ensures low inside / outside noise levels
  • The fully welded chassis is a perfect combination of and ROPS tested) strength, weight and easy access
  • Heavy duty Cardanic 2" & 3.5" fifth wheel with lift capacity of up to 99,000 lbs
  • High intensity head lights, rear cab mounted LED work lights and reverse LED light
  • Constant 4-wheel drive
  • Planetary hub axles (Kessler)
  • Volvo engine paired with ZF transmission
1 heavy-duty-terminal-tractor
2 heavy-duty-terminal-tractor
3 heavy-duty-terminal-tractor
4 heavy-duty-terminal-tractor
5 heavy-duty-terminal-tractor
6 heavy-duty-terminal-tractor
7 heavy-duty-terminal-tractor
8 heavy-duty-terminal-tractor
9 heavy-duty-terminal-tractor
operation-sticker
Next Generation
innovation-sticker
Numerous Innovations
technology-sticker
Easy Maintenance
diagnostics-sticker
Terberg Connect

Optional Equipment

Steel Mudguards
Cab Protection Frame
Additional Handrails
LED Headlights
Electric Window
Adjustable Steer Column
Trainer Seat
Power Connection
Jump Start Connection
Additional Side Door
Heavy-Duty Tow Coupling
Heavy Haul Counterweights
